VisualXML | Vehicle Network Design Tool
VisualXML is a powerful vehicle network design tool, supports Excel file import, one-click easy conversion of DBC, LDF, FIBEX, ARXML and others. Supports CAN/ CAN(FD), LIN, FlexRay, Ethernet and other bus standards.
Application Areas
Network design.
Bus analysis and testing.
Network jitter and network delay monitoring.
ECU controller development.
Advantages
User-friendly interface, easy for beginners to quickly start using.
Standard Excel templates for users to quickly create forms.
The data can be split according to ECU nodes, which is convenient for users to analyze.
Gateway routing table can be generated.
Automatic checking to ensure the integrity and validity of the data.
Customizable Excel templates to support customer specific functionality extensions.
VisualXML
Functions
Check

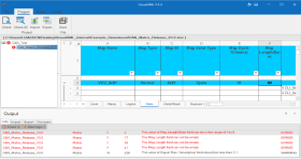

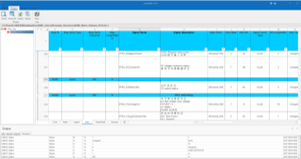

Checksums for node name, message name, data type, etc. can be hyperlinked to locate the error cell. The result of the checksums is divided into two levels.
Error：Error report needs to be modified according to the checking rules, otherwise it does not support data import and export.
Warning：Result is reported as a warning prompt, which does not affect data import and export.
Export
Support Excel summary table, DBC，LDF，ARXML and Hex export;
Support DBC/ LDF/ ARXML format conversion;
The CAN Matrix of each subnet is automatically converted to the gateway routing table;
Automatic generation of gateway routing table;
Support customized EXCEL templates.
Editor

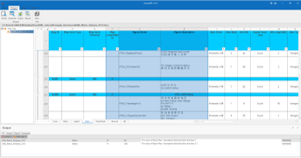

After checking, you can edit and modify the contents of the form according to the checking rules.
Split
Support split export by ECU node.
Compare

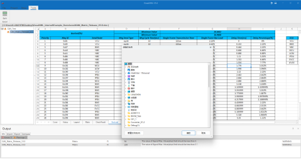

By importing a comparison file, VisualXML is able to quickly compare two
different versions of a database file, find the differences in the files and display the results in the output below.
Topology

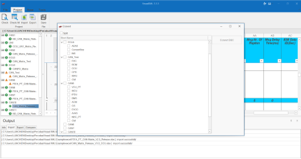

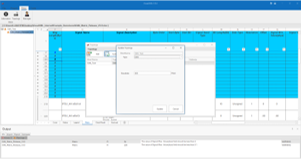

Create a new topology, add file name, file type, baud rate and other
information;
The file type can be selected from the drop-down list: CAN/ CAN(FD)/ Ethernet/ Gateway.
Bus Load Calculation

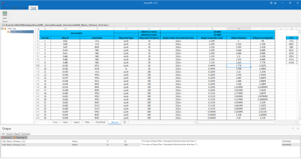

After the check is passed, Bus Load is automatically calculated for each node and estimated Bus Load Ratio for the best and worst cases; Sheet forms can be generated directly in Matrix.
Split nodes to export Excel
Splitting by node from the Matrix summary table can be generated directly from the original table without passing check; This function is expanded in Tool in the menu bar.
VisualXML
System Requirements:
Operating System: Windows 10/11 (64bit)
Support Library: Microsoft NET Framework 4.5
Recommended processor: Intel Core i3 4 Core Processor, 4GB RAM
Recommended screen resolution: 1024* 768 or higher
| Products | Description |
VisualXML-STD | Network Design Tool, Standard Node-Locked license or Floating licensing |
VisualXML-STD-ARXML | Supports ARXML Database file import and export |
VisualXML-STD-SOA | Supports Ethernet Protocol input, Excel import and export |
VisualXML-STD-DBC | Supports Vector DBC Database file import and export Supports J1939 standard protocol Supports E2E protection mechanism |
VisualXML-STD-LDF | Supports LIN LDF Database file import and export |
VisualXML-STD-RT | Supports to create Gateway Route Table, export HEX file to be directly downloaded to the gateway |
| Engineering Services | Custom Excel spreadsheets Customize the interface and features-on request |
| Supplementary Products | Description |
Q-Vision | Network Analysis and ECU Testing Tool |
VisualODX | Diagnostic Design Tool |
