Faster and More Powerful | Q-Tester.Expert V4.7 New Upgrade
Q-Tester is a Multifunctional Diagnostic instrument based on ODX(ASAM MCD-2D/ISO 22901-1) and OTX(ISO 13209), which is in line with international stan-dard. And we can use it to exchange data with ECU. The advantage of our solution(based on the ODX international standard) is that the ODX database c-an not only be interacted with the development department, but can also be released to the production and after-sales department after encryption. It en-sures that the diagnostic data on tool chains is homogeneous and uses uniform international standard data format and data definition.
Q-Tester 4.7 is now available. This version is updated from Win32 to Win64, which makes the experience of using the software become smoother, at the same tim-e, the interface UI and most of the plugins have been upgraded, known problems have also been fixed, so as to bring a better use experience for users.
1. Add Layout Functionality

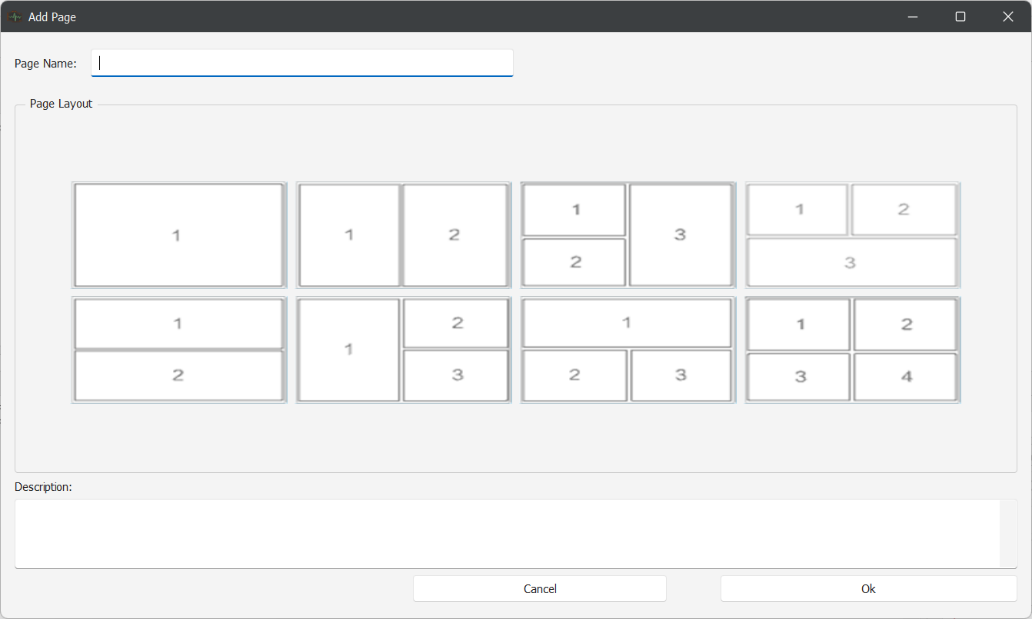

The software adds the layout function, as shown below, we provide 8 different layout structures which can be chosen when configuring, and each layout interf-ace can add a plugin.
2.Add global variable configuration functionality
The software adds global variable configuration in function bar, some commonly used configuration parameters can be saved through variable configuration func-tionality, and the saved data can be exported through excel format. The exported excel sheet can also be imported into the variable configuration function in-terface for repeated use which can improve test efficiency.
3. Upgrade Flash functionality
Through self-developed technology, the software adds support for DoIP flash, which can support large files over 20GB.
4. Add report view mode in VehicleStatus plugin
The software optimizes the report view mode, the vehicle DID and DTC read by the VehicleStatus plugin can be exported and saved in the form of a report, as s-hown below.
5. The Sequence plugin upgrades to support OTX script execution
The Sequence plugin adds the ability to parse and execute OTX-formatted scripts.
Sequence plugin supports the creation of complex diagnostic sequences, optimizes the functions of IF, WHILE, FOR, WAIT statements, and adds the functionality of sequence copy, import and export.
